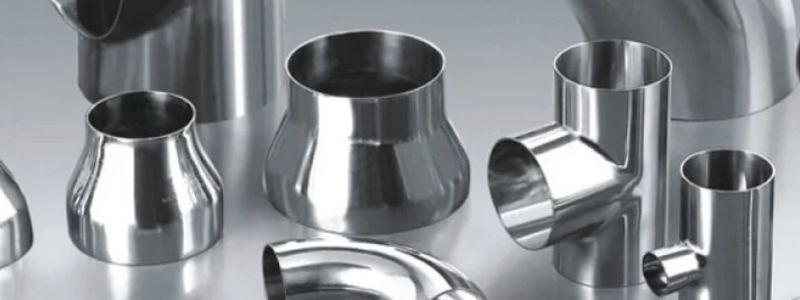

Shrikant Steel Centre is a trusted IBR Approved Pipe Fittings Supplier in Dubai. Our IBR Approved Pipe Fittings are engineered to meet strict Dubain Boiler Regulations (IBR) safety, pressure, and temperature guidelines. Our products undergo rigorous testing, certified material verification, and precision machining to deliver flawless performance in critical steam and pressure applications.
Shrikant Steel Centre is a leading Pipe Fittings Supplier in Dubai , specializing in high-quality IBR-approved pipe fittings. All supplied fittings are fully certified and accompanied by Form III-C test certificates inspectable by authorized IBR inspectors. To accommodate diverse high-pressure boiler piping requirements, products are available across various pressure ratings, wall schedules, and material grades. These IBR-certified fittings are extensively utilized in power plants, thermal boilers, and high-pressure steam pipelines.
| IBR Approved Pipe Fittings | Specification |
|---|---|
| Types | IBR Approved Coupling, IBR Approved Reducer, IBR Approved Stub End, IBR Elbow, IBR Tee, IBR Bend, IBR Cap |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Size | ½ NB to 48NB (Seamless up to 24", Welded up to 48") |
| Form | Seamless / ERW / Welded / Forged / Fabricated |
| Grade | |
| Stainless Steel | 201, 202, 205. 301, 302, 303, 304, 304L, 308, 309, 309S, 310, 310S, 314, 316, 316L, 316TI, 317, 317L, 321, 347. 405, 409, 429, 430, 430F, 430FSe, 434, 436, 442, 446, 403, 410, 414, 416, 416Se, 420, 420F, 422, 431, 440A, 440B, 440C. 501, 502. 630 (17-4 PH). |
| Titanium | Titanium 6-4, Gr 1, Gr 2, Gr 3, Gr 4, Gr 5, Gr 7, Gr 9, 5-2.5, 6-2-4-2, 6-4 ELI, 6-6-2. |
| Hastelloy | C22, C276, X, B-2. |
| Monel | 400, K500. |
| Nickel Alloy | Nickel 200 Nickel 201, Alloy 20, Alloy 286, Alloy 218 (Nitronic 60), Nitronic 50 (XM-19). |
| Inconel | 601, 625, 660A, 718, X-750, 825, 925, 608. |
| Nimonic Alloy | 75, 80A, 81, 86, PE16, PE12. |
| Duplex / Super Duplex | D S31803, D S32205, SD S32750, SD S32760, SD S32950. |
The chemical composition of stainless steel IBR approved pipe fittings plays a critical role in ensuring compliance with Dubain Boiler Regulations, maintaining tensile strength, creep resistance, and durability under high temperature and pressure steam operations. The following table provides composition parameters for standard grades.
| Stainless Steel IBR Approved Pipe Fittings Chemical Composition (%) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Type | C | Mn | P | S | Si | Cr | Ni | Mo |
| 304 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 8.00-11.00 | - |
| 304L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 8.00-13.00 | - |
| 310 | 0.25 max | 2.00 max | 0.045 max | 0.030 max | 1.50 max | 24.00-26.00 | 19.00-22.00 | - |
| 316 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-15.00 | 2.00-3.00 |
| 317L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 11.00-15.00 | 3.00-4.00 |
| 321 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 17.00-19.00 | 9.00-12.00 | - |
Stainless steel IBR approved pipe fittings undergo rigorous non-destructive testing and mechanical evaluation to verify high tensile strength, minimum yield stress, and resistance to thermal stress under extreme steam pressures.
| Stainless Steel IBR Approved Pipe Fittings Mechanical Properties | ||||
|---|---|---|---|---|
| Grade | UNS | Tensile Strength (ksi), min | Yield Strength (ksi), min | Elongation (%), min |
| WP304 | S30400 | 75 | 30 | 30 |
| WP304L | S30403 | 70 | 25 | 30 |
| WP316 | S31600 | 75 | 30 | 30 |
| WP316L | S31603 | 70 | 25 | 30 |
IBR-approved pipe fittings are supplied in accordance with applicable dimensional standards, such as ASME B16.9, ASME B16.11, and BS 3799, where relevant. The table below lists nominal pipe sizes and their corresponding outside dimensions for reference. Actual dimensions depend on the fitting type and applicable specifications.
| IBR Approved Pipe Fittings Size Chart | ||
|---|---|---|
| NPS (Nominal Pipe Size) | Outside Diameter (inches) | Outside Diameter (mm) |
| 1/8 | 0.405 | 10.29 |
| 1/4 | 0.540 | 13.72 |
| 3/8 | 0.675 | 17.15 |
| 1/2 | 0.840 | 21.34 |
| 3/4 | 1.050 | 26.67 |
| 1 | 1.315 | 33.40 |
| 1 1/4 | 1.660 | 42.16 |
| 1 1/2 | 1.900 | 48.26 |
| 2 | 2.375 | 60.33 |
| 2 1/2 | 2.875 | 73.03 |
| 3 | 3.500 | 88.90 |
| 3 1/2 | 4.000 | 101.60 |
| 4 | 4.500 | 114.30 |
| 5 | 5.563 | 141.30 |
| 6 | 6.625 | 168.28 |
| 8 | 8.625 | 219.08 |
| 10 | 10.750 | 273.05 |
We are a leading High Quality IBR Approved Pipe Fittings Supplier in Dubai
Our several locations in Dubai make it easier for our customers to purchase from Shrikant Steel Centre regardless of where they are. When you require high-quality IBR Approved Pipe Fittings and other related components at a competitive price, contact us to ensure prompt and reliable delivery.
| City We Supply | |||||
|---|---|---|---|---|---|
| Bengaluru | Mumbai | Chennai | Hyderabad | Kolkata | Pune |
| New Delhi | Ahmedabad | Jaipur | Surat | Salem | Gandhinagar |
| Bhiwandi | Tiruppur | Sivakasi | Jamnagar | Thiruvananthapuram | Rajahmundry |
| Bhubaneswar | Vijaywada | Firozabad | Pithampur | Rajkot | Bharuch |
| Panna | Raipur | Cochin | Ludhiana | Panipat | Durgapur |
| Peenya | Hosdurg | Channapatna | Kharagpur | Nashik | Bareilly |
Shrikant Steel Centre is a renowned IBR Approved Pipe Fittings Supplier. Every year, significant quantities of IBR certified fittings are exported globally. We deliver to clients worldwide with consistent commitment to quality and quick turnaround times.
| Countries We Supply | ||||
|---|---|---|---|---|
| Saudi Arabia | Oman | Kuwait | Netherlands | Iran |
| Bahrain | Qatar | UAE | Africa | China |
| Nigeria | Mexico | Canada | Venezuela | United Kingdom |
| United States | South Africa | Malaysia | Bangladesh | Turkey |
| Singapore | Sri Lanka | Australia | Brazil | Germany |
| France | Italy | South Korea | Poland | Belgium |
