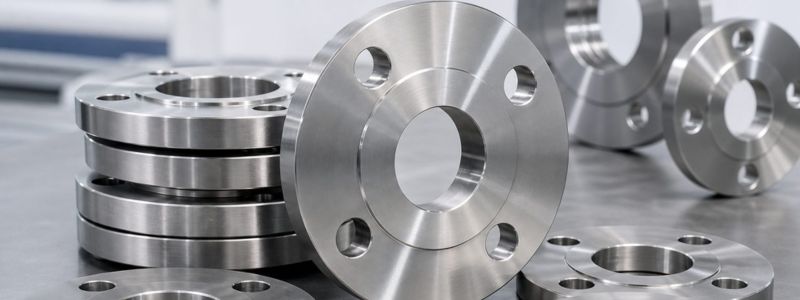

Shrikant Steel Centre is a trusted Flanges Supplier in Dubai. We offer durable, precision-engineered flanges suitable for various industrial piping systems. Our products are available in different sizes, pressure ratings, materials and specifications to meet customer requirements and applicable national and international standards.
Shrikant Steel Centre is a reliable Flanges Supplier in Dubai, offering quality flanges for industrial piping applications. Our flanges are available in multiple sizes, thicknesses, pressure classes and material grades. We focus on dimensional accuracy, dependable quality and products suited to demanding operating conditions.
Our range includes weld neck flanges, slip-on flanges, blind flanges, socket weld flanges, threaded flanges, lap joint flanges and plate flanges. We supply stainless steel, carbon steel, alloy steel, duplex steel and other alloy flanges according to the required specifications.
| Flanges | Specification |
|---|---|
| Types | Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint, Plate, Long Weld Neck and Orifice Flanges |
| Standards | ASME B16.5, ASME B16.47, ASME B16.36, ANSI, DIN, EN, BS and JIS |
| Pressure Class | 150, 300, 400, 600, 900, 1500 and 2500, subject to type and standard |
| Size | 1/2 Inch to 48 Inches, depending on flange type and standard |
| Form | Forged, Plate and Customized Flanges |
| Material Grades | |
| Stainless Steel | 201, 202, 301, 302, 303, 304, 304L, 309, 309S, 310, 310S, 316, 316L, 316Ti, 317, 317L, 321, 347, 410, 420 and 430 |
| Carbon Steel | ASTM A105, ASTM A350 LF2 and other applicable carbon steel grades |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22 and F91 |
| Titanium | Grade 1, Grade 2, Grade 3, Grade 4, Grade 5 and Grade 7 |
| Hastelloy | C22, C276, B-2 and X |
| Monel | Monel 400 and Monel K500 |
| Nickel Alloy | Nickel 200, Nickel 201, Alloy 20 and other available nickel alloy grades |
| Inconel | Inconel 600, 601, 625, 718 and 825 |
| Nimonic Alloy | Nimonic 75, 80A and other available grades |
| Duplex / Super Duplex | UNS S31803, S32205, S32750 and S32760 |
The chemical composition of Flanges determines their corrosion resistance, strength, durability, and suitability for high-temperature and high-pressure applications. Flanges are available in various grades to meet the requirements of industrial piping systems.
| Flanges Chemical Composition (%) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Grade | C | Mn | P | S | Si | Cr | Ni | Mo |
| F304 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 8.00-11.00 | - |
| F304L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 8.00-13.00 | - |
| F316 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| F316L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-15.00 | 2.00-3.00 |
| F310 | 0.25 max | 2.00 max | 0.045 max | 0.030 max | 1.50 max | 24.00-26.00 | 19.00-22.00 | - |
The mechanical properties of Flanges determine their ability to withstand pressure, tensile loads, and demanding operating conditions. The values below are typical minimum requirements for the listed ASTM A182 forged stainless steel grades and should be checked against the applicable specification and grade.
| Flanges Mechanical Properties | |||||
|---|---|---|---|---|---|
| Grade | UNS | Tensile Strength (MPa), min | Yield Strength (MPa), min | Elongation (%), min | Reduction of Area (%), min |
| F304 | S30400 | 515 | 205 | 30 | 50 |
| F304L | S30403 | 485 | 170 | 30 | 50 |
| F316 | S31600 | 515 | 205 | 30 | 50 |
| F316L | S31603 | 485 | 170 | 30 | 50 |
Flanges are available in different nominal sizes, pressure classes, and facing types. Flange dimensions vary according to the applicable standard, such as ASME B16.5 or ASME B16.47. The following reference table provides selected Class 150 flange dimensions. Confirm the complete dimensions and pressure ratings against the relevant standard before ordering.
| Flanges - ASME B16.5 Class 150 (Selected Sizes) | |||||
|---|---|---|---|---|---|
| NPS | DN | Flange Outside Diameter (mm) | Approx. Flange Thickness (mm) | Bolt Circle Diameter (mm) | Number of Bolts |
| 1/2" | 15 | 88.9 | 11.2 | 60.3 | 4 |
| 3/4" | 20 | 98.6 | 12.7 | 69.8 | 4 |
| 1" | 25 | 108.0 | 14.2 | 79.4 | 4 |
| 1 1/2" | 40 | 127.0 | 17.5 | 98.4 | 4 |
| 2" | 50 | 152.4 | 19.0 | 120.6 | 4 |
| 3" | 80 | 190.5 | 23.9 | 152.4 | 4 |
| 4" | 100 | 228.6 | 23.9 | 190.5 | 8 |
| 6" | 150 | 279.4 | 25.4 | 241.3 | 8 |
| 8" | 200 | 342.9 | 28.4 | 298.4 | 8 |
| 10" | 250 | 406.4 | 30.2 | 361.9 | 12 |
| 12" | 300 | 482.6 | 31.8 | 431.8 | 12 |
| 14" | 350 | 533.4 | 35.1 | 476.3 | 12 |
We are a trusted Flanges Supplier in Dubai, offering quality products for industrial piping applications.
Shrikant Steel Centre supplies flanges to customers across Dubai for diverse industrial requirements. We focus on product quality, suitable specifications and timely dispatch to help meet our customers' project and operational needs.
