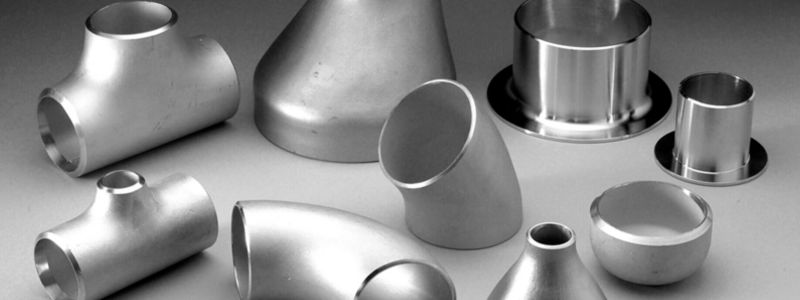

Shrikant Steel Centre is a trusted Elbow Pipe Fittings Supplier in Dubai. Our Elbow Pipe Fittings are very rigid and precision-engineered. Our products can also be customized and machined to match the specifications of our customers. We provide high-quality pipe elbows that meet national and international raw material quality criteria.
Shrikant Steel Centre is a leading Elbow Pipe Fittings Supplier in Dubai , delivering precision-engineered components backed by a strict quality guarantee. Designed to change fluid flow direction, these elbows are available in 45-degree, 90-degree, and 180-degree angle configurations. They are available in various sizes, thicknesses, and specifications to meet diverse industrial piping requirements. The product range includes stainless steel, carbon steel, and alloy steel variants suitable for demanding applications. These fittings are designed to provide durability, accurate alignment, and reliable flow management in industrial piping systems.
| Elbow Pipe Fittings | Specification |
|---|---|
| Types | Pipe Fittings Elbow 45 Deg, Pipe Fittings Elbow 90 Deg, Pipe Fittings Elbow 180 Deg |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Size | ½ NB to 48NB (Seamless up to 24", Welded up to 48") |
| Form | Seamless / ERW / Welded / Fabricated |
| Grade | |
| Stainless Steel | 201, 202, 205. 301, 302, 303, 304, 304L, 308, 309, 309S, 310, 310S, 314, 316, 316L, 316TI, 317, 317L, 321, 347. 405, 409, 429, 430, 430F, 430FSe, 434, 436, 442, 446, 403, 410, 414, 416, 416Se, 420, 420F, 422, 431, 440A, 440B, 440C. 501, 502. 630 (17-4 PH). |
| Titanium | Titanium 6-4, Gr 1, Gr 2, Gr 3, Gr 4, Gr 5, Gr 7, Gr 9, 5-2.5, 6-2-4-2, 6-4 ELI, 6-6-2. |
| Hastelloy | C22, C276, X, B-2. |
| Monel | 400, K500. |
| Nickel Alloy | Nickel 200 Nickel 201, Alloy 20, Alloy 286, Alloy 218 (Nitronic 60), Nitronic 50 (XM-19). |
| Inconel | 601, 625, 660A, 718, X-750, 825, 925, 608. |
| Nimonic Alloy | 75, 80A, 81, 86, PE16, PE12. |
| Duplex / Super Duplex | D S31803, D S32205, SD S32750, SD S32760, SD S32950. |
The chemical composition of stainless steel elbow pipe fittings plays an important role in determining their corrosion resistance, strength, durability, and performance under high-temperature conditions. The following table provides the typical composition limits for commonly used stainless steel grades. Actual requirements depend on the applicable material specification.
| Stainless Steel Elbow Pipe Fittings Chemical Composition (%) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Type | C | Mn | P | S | Si | Cr | Ni | Mo |
| 304 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 8.00-11.00 | - |
| 304L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 8.00-13.00 | - |
| 310 | 0.25 max | 2.00 max | 0.045 max | 0.030 max | 1.50 max | 24.00-26.00 | 19.00-22.00 | - |
| 316 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-15.00 | 2.00-3.00 |
| 317L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 11.00-15.00 | 3.00-4.00 |
| 321 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 17.00-19.00 | 9.00-12.00 | - |
Stainless steel elbow pipe fittings are selected for their tensile strength, yield strength, ductility, and resistance to deformation under pressure. Mechanical properties vary according to the grade, heat treatment, and applicable ASTM specification.
| Stainless Steel Elbow Pipe Fittings Mechanical Properties | ||||
|---|---|---|---|---|
| Grade | UNS | Tensile Strength (ksi), min | Yield Strength (ksi), min | Elongation (%), min |
| WP304 | S30400 | 75 | 30 | 30 |
| WP304L | S30403 | 70 | 25 | 30 |
| WP316 | S31600 | 75 | 30 | 30 |
| WP316L | S31603 | 70 | 25 | 30 |
Elbow pipe fittings are available in different nominal pipe sizes, wall thicknesses, schedules, and radii (such as Pipe Fittings Elbow 45 Deg, 90 Deg, and 180 Deg). schedule, and applicable standard. They are commonly supplied in accordance with applicable dimensional standards such as ASME B16.9, ASME B16.28, and MSS-SP-43. The table below provides nominal pipe sizes and their corresponding outside diameters for reference. Actual fitting dimensions vary depending on the fitting type, schedule, and applicable standard.
| Elbow Pipe Fittings Size Chart | ||
|---|---|---|
| NPS (Nominal Pipe Size) | Outside Diameter (inches) | Outside Diameter (mm) |
| 1/8 | 0.405 | 10.29 |
| 1/4 | 0.540 | 13.72 |
| 3/8 | 0.675 | 17.15 |
| 1/2 | 0.840 | 21.34 |
| 3/4 | 1.050 | 26.67 |
| 1 | 1.315 | 33.40 |
| 1 1/4 | 1.660 | 42.16 |
| 1 1/2 | 1.900 | 48.26 |
| 2 | 2.375 | 60.33 |
| 2 1/2 | 2.875 | 73.03 |
| 3 | 3.500 | 88.90 |
| 3 1/2 | 4.000 | 101.60 |
| 4 | 4.500 | 114.30 |
| 5 | 5.563 | 141.30 |
| 6 | 6.625 | 168.28 |
| 8 | 8.625 | 219.08 |
| 10 | 10.750 | 273.05 |
We are a leading High Quality Elbow Pipe Fittings Supplier in Dubai
Our several locations in Dubai make it easier for our customers to purchase from Shrikant Steel Centre regardless of where they are. When you require high-quality Elbow Pipe Fittings and other related items at a fair price, contact us first to ensure that your purchases are delivered promptly and on time.
