Shrikant Steel Centre is a trusted EIL Approved Pipe Fittings Supplier in Dubai, supplying precision-engineered piping components for demanding industrial applications. Our EIL compliant pipe fittings are designed for reliable performance in high-pressure, high-temperature, and corrosive environments. These fittings are suitable for refinery, petrochemical, oil and gas, power generation, chemical processing, and other critical infrastructure projects, subject to applicable project specifications and approvals.

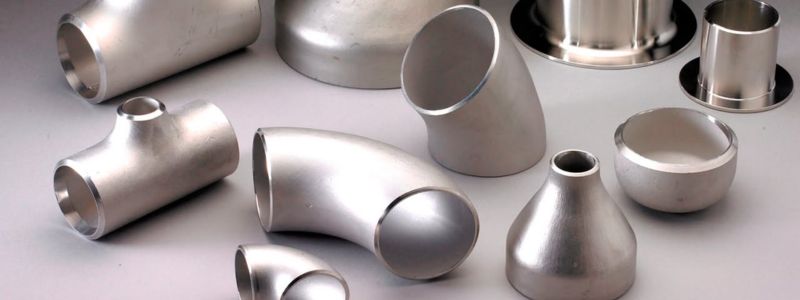

Shrikant Steel Centre is an EIL-approved supplier in Dubai providing a comprehensive range of industrial pipe fittings engineered to meet strict material and quality standards. Their product offering includes elbows, tees, reducers (concentric and eccentric), caps, crosses, and various butt-weld and forged fittings. To support demanding piping installations, all products are supplied with complete inspection and material documentation tailored to customer requirements. These fittings are available in a broad range of materials, including carbon steel, stainless steel, alloy steel, duplex, super duplex, and select nickel alloys.
| Product Name | EIL Approved Pipe Fittings |
|---|---|
| Available Types | 90 Degree Elbows, 45 Degree Elbows, Long Radius Elbows, Short Radius Elbows, Equal Tees, Reducing Tees, Concentric Reducers, Eccentric Reducers, Caps, Crosses, and Forged Fittings |
| Applicable Standards | ASME B16.9, ASME B16.11, ASME B16.28, MSS SP-43, MSS SP-75, and applicable project specifications |
| Size Range | Butt-Weld Fittings: 1/2" NB to 48" NB, subject to type and standard; Forged Fittings: sizes as specified by the applicable standard |
| Schedule / Wall Thickness | Schedule 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, STD, XS, and XXS, where applicable |
| Connection Types | Butt Weld, Socket Weld, and Threaded Connections, depending on fitting type |
| Inspection & Documentation | Material Test Certificates, dimensional inspection, visual inspection, and additional testing or third-party inspection as required by the purchase order |
| EIL Approved Material Grades | |
| Stainless Steel | ASTM A403 WP304, WP304L, WP316, WP316L, WP321, WP347, and other specified grades |
| Carbon Steel | ASTM A234 WPB, WPC, and other specified carbon steel grades |
| Low Temperature Carbon Steel | ASTM A420 WPL6 and other specified low-temperature grades |
| Alloy Steel | ASTM A234 WP11, WP22, WP5, WP9, WP91, and other specified alloy steel grades |
| Duplex / Super Duplex | ASTM A815 WP-S31803, WP-S32205, WP-S32750, WP-S32760, and applicable specified grades |
| Nickel Alloys | Selected Inconel, Monel, Hastelloy, and Alloy 20 fittings, subject to applicable product standards and availability |
Chemical composition plays an important role in the strength, corrosion resistance, weldability, and service performance of industrial pipe fittings. The following table provides indicative composition limits for selected commonly used fitting material grades. Actual acceptance requirements must be verified against the applicable ASTM material specification, grade, product form, and purchase order.
| EIL Approved Pipe Fittings Chemical Composition (%) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Grade | C | Mn | P | S | Si | Cr | Ni | Mo |
| ASTM A234 WPB | 0.30 max | 0.29-1.06 | 0.050 max | 0.058 max | 0.10 min | 0.40 max | 0.40 max | 0.15 max |
| ASTM A403 WP304 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 8.00-11.00 | - |
| ASTM A403 WP304L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 8.00-12.00 | - |
| ASTM A403 WP316 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| ASTM A403 WP316L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-15.00 | 2.00-3.00 |
Mechanical properties determine the ability of pipe fittings to withstand pressure, loading, temperature variations, and operating stresses. Values vary by material specification, grade, heat treatment, thickness, and test requirements. The following reference values are indicative and should be checked against the relevant material standard and certified test reports.
| EIL Approved Pipe Fittings Mechanical Properties | |||||
|---|---|---|---|---|---|
| Grade | UNS / Spec | Tensile Strength (MPa), min | Yield Strength (MPa), min | Elongation (%), min | Hardness |
| ASTM A234 WPB | Carbon Steel | 415 | 240 | 22 | As per applicable specification |
| ASTM A420 WPL6 | Low Temperature CS | 415 | 240 | 22 | As per applicable specification |
| ASTM A403 WP304 | S30400 | 515 | 205 | 35 | As per applicable specification |
| ASTM A403 WP316L | S31603 | 485 | 170 | 35 | As per applicable specification |
| ASTM A815 Duplex | UNS S31803 | As per grade specification | As per grade specification | As per grade specification | As per applicable specification |
Pipe fitting dimensions depend on the fitting type, nominal pipe size, schedule, and applicable dimensional standard. Butt-weld elbows, tees, reducers, and caps are generally specified according to ASME B16.9, while forged socket-weld and threaded fittings are covered by ASME B16.11. Always confirm dimensions against the approved drawing and relevant standard before ordering.
| ASME B16.9 Butt-Weld Elbow Reference Dimensions | ||||
|---|---|---|---|---|
| NPS | DN | Long Radius 90° Elbow Center-to-End (mm) | Long Radius 45° Elbow Center-to-End (mm) | Short Radius 90° Elbow Center-to-End (mm) |
| 1/2" | 15 | 38.1 | 15.9 | 15.9 |
| 3/4" | 20 | 38.1 | 15.9 | 15.9 |
| 1" | 25 | 38.1 | 15.9 | 25.4 |
| 1 1/2" | 40 | 57.2 | 22.2 | 38.1 |
| 2" | 50 | 76.2 | 28.6 | 50.8 |
| 3" | 80 | 114.3 | 41.3 | 76.2 |
| 4" | 100 | 152.4 | 50.8 | 101.6 |
| 6" | 150 | 228.6 | 76.2 | 152.4 |
| 8" | 200 | 304.8 | 101.6 | 203.2 |
| 10" | 250 | 381.0 | 127.0 | 254.0 |
Shrikant Steel Centre supplies quality industrial pipe fittings with material traceability and inspection documentation.
Shrikant Steel Centre supplies industrial pipe fittings to customers and project sites across major industrial locations in Dubai. Contact our team for availability, material grades, inspection requirements, and delivery arrangements.
