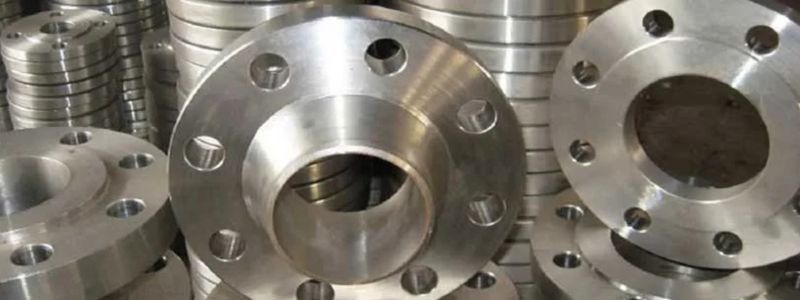

Shrikant Steel Centre is a trusted ASTM A182 F317L Stainless Steel Flanges Supplier in Dubai. Our ASTM A182 F317L Stainless Steel Flanges are extremely rigid, highly resistant to chemical pitting, and precision-engineered. Our products can also be customized and machined to match the specific requirements of our customers. We provide high-quality molybdenum-bearing 317L flanges that meet national and international raw material quality criteria.
Shrikant Steel Centre is a trusted ASTM A182 F317L Stainless Steel Flanges Supplier in Dubai. We offer Grade F317L Flanges in a wide range of pressure ratings, dimensions, facing types, and specifications to meet diverse customer requirements. Our products are supplied with a focus on quality, material compliance, and reliable service.
ASTM A182 F317L is a low-carbon molybdenum-bearing austenitic stainless steel flange grade that offers significantly greater resistance to chemical attack, pitting, and crevice corrosion compared to conventional 304L and 316L stainless steel. Its low carbon content prevents intergranular corrosion during welding, making it ideal for severe chemical processing, marine, pulp & paper, and power generation environments.
| Flange Category | Specification |
|---|---|
| Specification | ASTM A182 / ASME SA182 |
| Grade | F317L (UNS S31703 / 1.4438) |
| Types | Weld Neck Flange, Slip On Flange, Blind Flange, Socket Weld Flange, Threaded Flange, Lap Joint Flange |
| Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 / PN6, PN10, PN16, PN25, PN40, PN64 |
| Size | ½ NB to 48 NB |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ), Male & Female, Tongue & Groove |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, EN 1092-1, DIN, BS, JIS |
The chemical composition of ASTM A182 F317L stainless steel flanges plays a crucial role in providing enhanced resistance to chloride pitting, crevice corrosion, and acidic environments. Higher molybdenum content (3.0–4.0%) significantly improves performance over 316L grade stainless steel.
| ASTM A182 F317L Chemical Composition (%) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Grade | C | Mn | P | S | Si | Cr | Ni | Mo |
| F317L (S31703) | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 11.00-15.00 | 3.00-4.00 |
ASTM A182 F317L forged stainless steel flanges are selected for their high tensile strength, yield performance, excellent ductility, and structural endurance under aggressive fluid handling and elevated pressure levels.
| ASTM A182 F317L Flanges Mechanical Properties | ||||
|---|---|---|---|---|
| Grade | UNS | Tensile Strength (ksi / MPa), min | Yield Strength (ksi / MPa), min | Elongation (%), min |
| F317L | S31703 | 70 / 485 | 25 / 170 | 30 |
ASTM A182 F317L flanges are available in accordance with dimensional standards such as ASME B16.5 and ASME B16.47. The table below outlines nominal pipe sizes and their corresponding outside diameters for reference.
| ASTM A182 F317L Flanges Size Chart | ||
|---|---|---|
| NPS (Nominal Pipe Size) | Outside Diameter (inches) | Outside Diameter (mm) |
| 1/8 | 0.405 | 10.29 |
| 1/4 | 0.540 | 13.72 |
| 3/8 | 0.675 | 17.15 |
| 1/2 | 0.840 | 21.34 |
| 3/4 | 1.050 | 26.67 |
| 1 | 1.315 | 33.40 |
| 1 1/4 | 1.660 | 42.16 |
| 1 1/2 | 1.900 | 48.26 |
| 2 | 2.375 | 60.33 |
| 2 1/2 | 2.875 | 73.03 |
| 3 | 3.500 | 88.90 |
| 3 1/2 | 4.000 | 101.60 |
| 4 | 4.500 | 114.30 |
| 5 | 5.563 | 141.30 |
| 6 | 6.625 | 168.28 |
| 8 | 8.625 | 219.08 |
| 10 | 10.750 | 273.05 |
