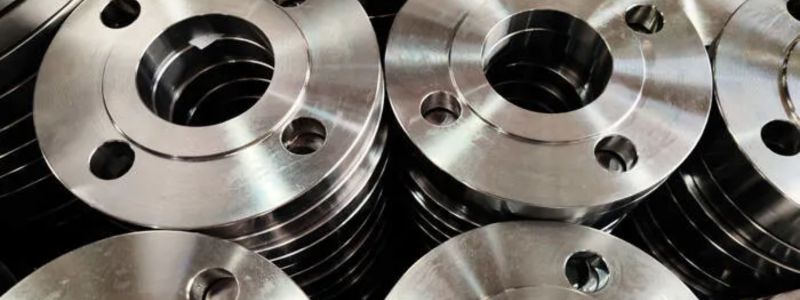

Shrikant Steel Centre is a trusted ASTM A182 F316Ti Stainless Steel Flanges Supplier in Dubai. Our ASTM A182 F316Ti Stainless Steel Flanges are extremely durable, highly corrosion-resistant, and precision-engineered. Our products can also be customized and machined to match the specific requirements of our customers. We provide high-quality titanium-stabilized 316Ti flanges that meet national and international raw material quality criteria.
Shrikant Steel Centre is a trusted ASTM A182 F316Ti Stainless Steel Flanges Supplier in Dubai. We offer Grade F316Ti Flanges in a wide range of pressure ratings, dimensions, facing types, and specifications to meet diverse customer requirements. Our flanges are supplied with a focus on quality, material compliance, and reliable service.
ASTM A182 F316Ti is a titanium-stabilized version of 316 molybdenum-bearing austenitic stainless steel. The addition of titanium prevents intergranular corrosion following exposure to high temperatures in the 800°F–1500°F (427°C–816°C) range, making these flanges ideal for high-temperature chemical, marine, and power generation applications.
| Flange Category | Specification |
|---|---|
| Specification | ASTM A182 / ASME SA182 |
| Grade | F316Ti (UNS S31635 / 1.4571) |
| Types | Weld Neck Flange, Slip On Flange, Blind Flange, Socket Weld Flange, Threaded Flange, Lap Joint Flange |
| Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 / PN6, PN10, PN16, PN25, PN40, PN64 |
| Size | ½ NB to 48 NB |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ), Male & Female, Tongue & Groove |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, EN 1092-1, DIN, BS, JIS |
The chemical composition of ASTM A182 F316Ti stainless steel flanges plays a crucial role in providing resistance to intergranular corrosion, pitting in chloride environments, and sensitization during elevated temperature service. The presence of titanium stabilizes the carbon to form titanium carbides rather than chromium carbides.
| ASTM A182 F316Ti Chemical Composition (%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Grade | C | Mn | P | S | Si | Cr | Ni | Mo | Ti |
| F316Ti (S31635) | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 5x(C+N) min - 0.70 max |
ASTM A182 F316Ti forged stainless steel flanges are selected for their excellent mechanical strength, yield stress resistance, ductility, and high creep-rupture performance under demanding mechanical loads and high-pressure steam/chemical systems.
| ASTM A182 F316Ti Flanges Mechanical Properties | ||||
|---|---|---|---|---|
| Grade | UNS | Tensile Strength (ksi / MPa), min | Yield Strength (ksi / MPa), min | Elongation (%), min |
| F316Ti | S31635 | 75 / 515 | 30 / 205 | 30 |
ASTM A182 F316Ti flanges are available in accordance with dimensional standards such as ASME B16.5 and ASME B16.47. The table below outlines nominal pipe sizes, corresponding outside diameters, and bolt pattern parameters for reference.
| ASTM A182 F316Ti Flanges Size Chart | ||
|---|---|---|
| NPS (Nominal Pipe Size) | Outside Diameter (inches) | Outside Diameter (mm) |
| 1/8 | 0.405 | 10.29 |
| 1/4 | 0.540 | 13.72 |
| 3/8 | 0.675 | 17.15 |
| 1/2 | 0.840 | 21.34 |
| 3/4 | 1.050 | 26.67 |
| 1 | 1.315 | 33.40 |
| 1 1/4 | 1.660 | 42.16 |
| 1 1/2 | 1.900 | 48.26 |
| 2 | 2.375 | 60.33 |
| 2 1/2 | 2.875 | 73.03 |
| 3 | 3.500 | 88.90 |
| 3 1/2 | 4.000 | 101.60 |
| 4 | 4.500 | 114.30 |
| 5 | 5.563 | 141.30 |
| 6 | 6.625 | 168.28 |
| 8 | 8.625 | 219.08 |
| 10 | 10.750 | 273.05 |
We are a leading High Quality ASTM A182 F316Ti Stainless Steel Flanges Supplier in Dubai
Our several locations in Dubai make it easier for our customers to purchase from Shrikant Steel Centre regardless of where they are. When you require high-quality ASTM A182 F316Ti Stainless Steel Flanges and other items at a fair price, contact us first to ensure that your purchases are delivered promptly and on time.
| City We Supply | |||||
|---|---|---|---|---|---|
| Bengaluru | Mumbai | Chennai | Hyderabad | Kolkata | Pune |
| New Delhi | Ahmedabad | Jaipur | Surat | Salem | Gandhinagar |
| Bhiwandi | Tiruppur | Sivakasi | Jamnagar | Thiruvananthapuram | Rajahmundry |
| Bhubaneswar | Vijaywada | Firozabad | Pithampur | Rajkot | Bharuch |
| Panna | Raipur | Cochin | Ludhiana | Panipat | Durgapur |
| Peenya | Hosdurg | Channapatna | Kharagpur | Nashik | Bareilly |
Shrikant Steel Centre is a well-known ASTM A182 F316Ti Stainless Steel Flanges Supplier. Every year, significant quantities of stainless steel flanges are transported from Dubai. We ship to a variety of countries on a regular basis for our new customers. We can communicate and fulfill our clients demands and expectations thanks to our prompt delivery of ASTM A182 F316Ti Stainless Steel Flanges.
| Countries We Supply | ||||
|---|---|---|---|---|
| Saudi Arabia | Oman | Kuwait | Netherlands | Iran |
| Bahrain | Qatar | UAE | Africa | China |
| Nigeria | Mexico | Canada | Venezuela | United Kingdom |
| United States | South Africa | Malaysia | Bangladesh | Turkey |
| Singapore | Sri Lanka | Australia | Brazil | Germany |
| France | Italy | South Korea | Poland | Belgium |
