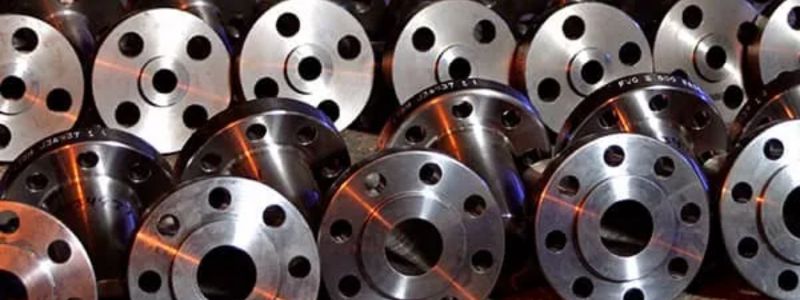

Shrikant Steel Centre is a premier ARAMCO Approved Flanges Supplier in Dubai. We deliver precision-engineered, high-performance ARAMCO approved flanges designed to strictly comply with Saudi Aramco Materials System Specifications (SAMSS). Ideal for high-pressure, severe-service, and sour gas piping installations, our ARAMCO approved flanges serve top-tier public and private sector projects across energy, petroleum, gas, and petrochemical processing industries.
As a leading ARAMCO Approved Flanges Supplier in Dubai, Shrikant Steel Centre stocks and supplies a comprehensive range of approved flanges. Our components undergo strict quality checks, including Positive Material Identification (PMI), 100% radiography, hydrostatic testing, NACE MR0175 compliance, and ultrasonic inspection to guarantee zero leakage and extreme structural integrity.
Our approved inventory includes Stainless Steel ARAMCO Approved Flanges, Carbon Steel ARAMCO Approved Flanges, and Duplex Steel ARAMCO Approved Flanges available in various pressure ratings, schedules, and material grades.
| Product Name | ARAMCO Approved Flanges |
|---|---|
| Available Types | ARAMCO Approved Weld Neck, Socket Weld, Slip On, Blind, and Threaded Flanges |
| Applicable Standards | ASME / ANSI B16.5, ASME B16.47 Series A & B, Saudi Aramco SAMSS / SAES Standards |
| Pressure Rating | Class 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS / PN6 to PN400 |
| Nominal Size Range | 1/2" NB to 48" NB (15 NB to 1200 NB) |
| Flange Facing Types | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Male & Female (M&F), Tongue & Groove (T&G) |
| Certification & Inspection | EN 10204 3.1 MTC, PMI Inspection Certificate, NACE MR0175 / ISO 15156 |
| ARAMCO Approved Flanges Material Grades | |
| Stainless Steel | ASTM A182 F304, F304L, F316, F316L, F310S, F317L, F321, F347 |
| Carbon Steel | ASTM A105, ASTM A350 LF2 (Low Temperature Carbon Steel), ASTM A694 F42, F52, F60, F65 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22, F91 |
| Duplex / Super Duplex | ASTM A182 F51 / UNS S31803, F53 / UNS S32750, F55 / UNS S32760 |
| Nickel Alloys | Inconel 600/625, Monel 400, Hastelloy C276, Alloy 20 |
Strict chemical composition monitoring is essential to ensure quality and compliance. The precise balance of elements guarantees required mechanical strength, oxidation stability, and resistance against pitting and stress corrosion cracking in aggressive operating environments.
| ARAMCO Approved Flanges Chemical Composition (%) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Grade | C | Mn | P | S | Si | Cr | Ni | Mo |
| ASTM A105 | 0.35 max | 0.60-1.05 | 0.035 max | 0.040 max | 0.10-0.35 | 0.30 max | 0.40 max | 0.12 max |
| F304 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 8.00-11.00 | - |
| F304L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 18.00-20.00 | 8.00-13.00 | - |
| F316 | 0.08 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| F316L | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.00-18.00 | 10.00-15.00 | 2.00-3.00 |
Every ARAMCO approved flange undergoes rigorous destructive and non-destructive testing to verify structural mechanical performance. The table below highlights minimum standard mechanical requirements across key forging grades:
| ARAMCO Approved Flanges Mechanical Properties | |||||
|---|---|---|---|---|---|
| Grade | UNS / Spec | Tensile Strength (MPa), min | Yield Strength (MPa), min | Elongation (%), min | Hardness (HB), max |
| ASTM A105 | K03504 | 485 | 250 | 22 | 187 HB max |
| A350 LF2 | K11572 | 485 - 655 | 250 | 22 | 197 HB max |
| F304 | S30400 | 515 | 205 | 30 | 187 HB max |
| F316 | S31600 | 515 | 205 | 30 | 187 HB max |
| F51 (Duplex) | S31803 | 620 | 450 | 25 | 290 HB max |
ARAMCO approved flanges follow dimensional tolerances governed by ASME B16.5 and ASME B16.47 specifications. The table below presents standard reference dimensions for Class 150 Raised Face (RF) flanges:
| ASME B16.5 Class 150 ARAMCO Approved Flange Dimensions | |||||
|---|---|---|---|---|---|
| NPS | DN | Flange Outside Diameter (mm) | Flange Thickness (mm) | Bolt Circle Diameter (mm) | Number of Bolts |
| 1/2" | 15 | 88.9 | 11.2 | 60.3 | 4 |
| 3/4" | 20 | 98.6 | 12.7 | 69.8 | 4 |
| 1" | 25 | 108.0 | 14.2 | 79.4 | 4 |
| 1 1/2" | 40 | 127.0 | 17.5 | 98.4 | 4 |
| 2" | 50 | 152.4 | 19.0 | 120.6 | 4 |
| 3" | 80 | 190.5 | 23.9 | 152.4 | 4 |
| 4" | 100 | 228.6 | 23.9 | 190.5 | 8 |
| 6" | 150 | 279.4 | 25.4 | 241.3 | 8 |
| 8" | 200 | 342.9 | 28.4 | 298.4 | 8 |
| 10" | 250 | 406.4 | 30.2 | 361.9 | 12 |
